Bridge connects traditional two-way radios with Zello’s powerful push-to-talk (PTT) solution, enabling seamless cross-platform communication so teams can use both the hardware and software that’s optimized for their unique operational environment.

Bridge runs quietly in the background, ensuring non-disruptive interoperability between radio users and Zello. Its latest release expands capability to include both USB and JPS gateways, as well as provides an updated management UI for more friendly and accessible usage.

Networks that have historically utilized Zello’s legacy PC app will find Bridge a vital tool in their communications ecosystem. Zello plans to sunset the legacy PC app in the near future, so we highly recommend migrating to Bridge as soon as possible to ensure you’re receiving the best support and most updated product.

If you’re an existing legacy PC app user, see this section for assistance migrating from the legacy PC app to Zello Bridge.

Compatibility

This application is compatible with USB and JPS gateways. While both gateway types connect radios with communications software, they differ in how they transmit audio; USB gateways require direct USB connection to a PC, whereas JPS gateways generally transmit messages using Radio Over IP (RoIP) technology, meaning audio is delivered via an internet connection.

Common models of these gateways include:

Bridge is only compatible with channel communications. Because it relies on Zello’s channel API, it can’t be used for 1:1 messages. It’s currently exclusively available in a x64 bit package.

How it Works

Bridge expands Zello’s functionality beyond traditional Android and iOS operating systems, allowing devices operating on proprietary firmware to integrate with the Zello infrastructure.

When configured with either a JPS or USB gateway,  Bridge connects two-way radios with Zello, enabling smoother, more tailored PTT communications. It reads a 2-level structure from the configuration file: links and connectors.

• Links share the audio streams between connectors. They’re what ensure communications are transmitted from one connector to the other (i.e. from Zello to your team’s radios).

  While links are dependent on their designated connectors, they don’t interact with other links. Each link will have at least two connectors—the Zello API, the JPS gateway, or the USB gateway —and additional, platform-specific configuration attributes that dictate Bridge’s configuration.

  Bridge easily supports up to 16 links.


• Connectors are the endpoints you’re connecting using Bridge—for example, Zello’s channel API and a USB gateway. There are three possible endpoints: the Zello channel API, a USB gateway, or a JPS gateway. Each link includes at least two connectors; connectors are required attributes of a link's configuration.

Status Page

One of Bridge’s strengths lies in your ability to monitor its status through a webpage, providing access to real-time updates on your system’s performance. Once you’ve configured your links, their status will be displayed on the dashboard, offering targeted insight into the operations of each of your links and their associated connectors.

The status page is configured under the REST server section of the configuration file. It's accessible through port :8810.

Setup

In this article, we'll walk through configuring your instance of Zello Bridge (see step 1 and step 2). Additionally, we'll provide context for errors you may receive when using Bridge. If you have questions at any point in this process, please don't hesitate to contact our team at paidsupport@zello.com.

Step 1: Install Bridge

1. Click this link to download Bridge's installation package (version 1.25).


2. Run the installation package on your computer. Once installed, Bridge will automatically launch.


3. Open your browser of choice and type 127.0.0.1:8810 in the address bar. This will take you to Bridge's status page, which indicates a successful installation.


Step 2: Configure Bridge

Please note: If your network currently uses Zello’s legacy PC app, skip this section and instead refer to the Migration From the Legacy PC App section. The migration process is different (and slightly easier) than the initial configuration process for legacy PC users currently operating with a gateway setup.

Once you’ve installed Bridge, it’s time to edit your configuration file. Configuration files include a few key components:

• The REST server status page (:8810)
• Links
• Log location

Configuration files are included in your Bridge installation package, but please note that you'll need to manually configure the links yourself. To find and edit your configuration file:

1. Locate a file named zellobridge.json on your computer. It’ll likely be present in the Program Files\Zello\Zello Bridge folder, which was downloaded as part of the Bridge installation package.




2. Open the file in a text editor such as Notepad.



3. Edit the configuration file's links to meet your network’s requirements according to the instructions provided in this section.

   Please note that the only information you'll likely need to adjust in the configuration file is that pertaining to links (and consequently, their connectors).


4. Save the configuration file.



5. Open your browser and go to http://127.0.0.1:8810. Then, click Restart. Your configured links and their respective statuses will be listed on the homepage .

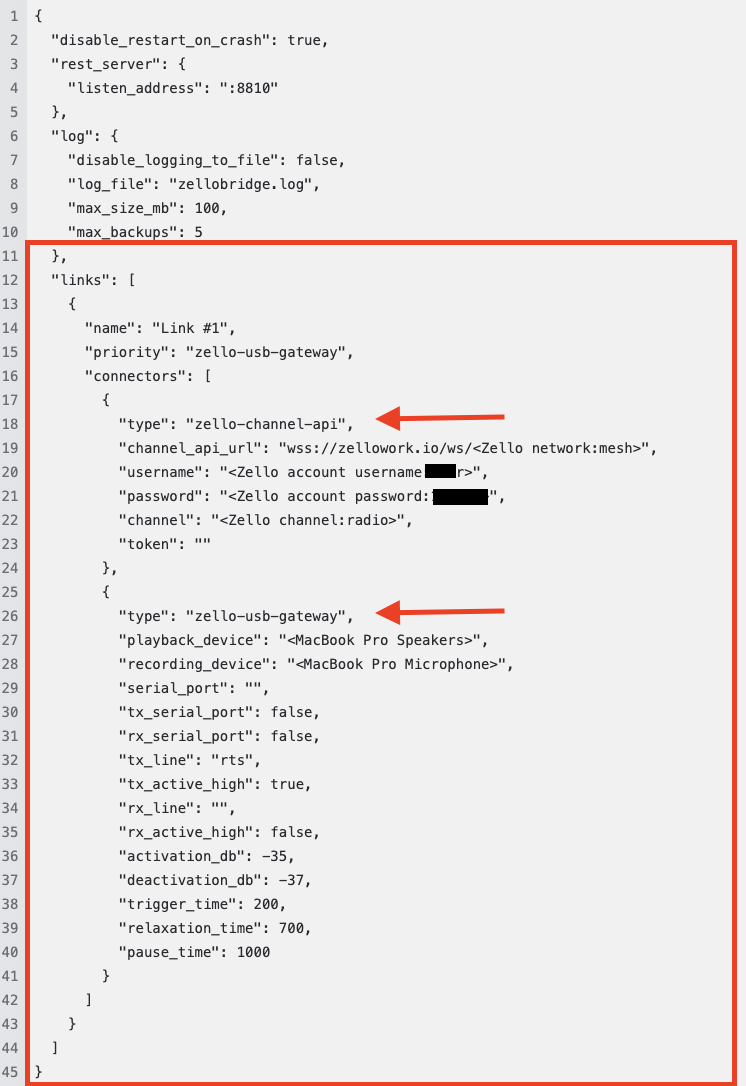

Editing the Configuration File

Zello Bridge will connect the endpoints established in your configuration file. This file will include 1 or more links, each of which have two or more connectors. Please note that links operate independently from each other, meaning link #1 will not impact link #2. Each configuration file can include up to 16 links.  Connectors are nested under links. They're the communication endpoints you'd like to connect.  To demonstrate, we’ve highlighted the links segment of an example configuration file connecting a USB gateway with the Zello Channel API. You’ll notice that there are two connectors associated with the link, as dictated by the two type attributes: zello-usb-gateway zello-channel-api We’ve included an example configuration file in the Downloads section of this article to reference as you build your own file.

Please remember: The configuration file that's included in Bridge's installation package requires manual link configuration. This ensures you're able to connect your specific technologies. See the Configuring Links section below for more information.

Configuring Links

Link configuration requires three components:

Configuring Connectors

There are 3 possible connector types:

• zello-channel-api
• jps-roip
• zello-usb-gateway

Each connector has its own set of configuration parameters. As a reminder, each link will have at least two connectors.

Please see the drop-downs below for a list of each connectors' attributes. The attributes associated with your intended setup should be added to your .pttconfig file. If any of the parameters included in the tables are not applicable to your setup (for example, those pertaining to VOX or Zello Friends & Family), exclude them from your file.

Please note: When connecting the Zello Channel API, you’ll be required to add a username and channel name to the configuration file. You should create a new user from the management console that’s exclusively used for the link you’re configuring. Then, you’ll want to add that user to the channel you’re connecting to the gateway.

•


  Parameter	What is it?	Example Value
  type	The connector type.	zello-channel-api
  name	The connector’s name.  If left blank, the channel name (configured below) will appear on the status page.	Zello Channel A
  channel_api_url	This is the entry point for Zello’s channel API.  The format for this value is: wss://zellowork.io/ws/yournetworkname	My network name is zello1234. I’d accordingly populate this parameter with:  wss://zellowork.io/ws/zello1234
  channel	The name of your network’s channel you’d like to connect to the gateway.  Please note that the channel must be pre-existing by this step. For information on creating channels, see this article.	ChannelA
  username	Username of an existing user profile. See this article for assistance creating a new user.  This username should be created specifically for the link you’re setting up. Please note that the username cannot be in use on another device or in another Zello Bridge link. It should be created for a single, specific link.  Ensure this user has been added to the channel you’ve assigned in the attribute above.	user1234
  password	The password associated with the username provided above.	mypassword1234!
  token*	*Not required for Zello Work accounts.  This field is only applicable to Zello Friends & Family users. See this documentation for assistance creating a token.

•


  Parameter	What is it?	Example Value
  type	The connector type.	jps-roip
  name	Assign the connector a name. This can be any string — it isn’t dependent on existing configurations.	Jps gateway 1
  remote_ip	The JPS radio interface’s IP address.	192.168.136
  remote_port	The port assigned to the JPS radio interface.	1224
  local_ip	IP address of the computer running Zello Bridge.	192.168.1.109
  local_port	The computer port that’ll be used by the JPS’s connector. This should be specific to the computer that’ll be used to run Bridge.	1223
  jitter_buffer_size	Size of the jitter buffer in packets.  This value is measured in 100ms packets. The default value is 10, which equates to 1 second of buffered audio.  If you experience breaking audio, consider increasing this value. Alternatively, decrease the value to reduce delay.	5
  is_full_duplex	Set this value to true if the gateway can send and receive audio at the same time. Set it to false if not.	false


  *Please note that JPS gateways require additional setup in the JPS management interface. See the Additional Information for JPS Gateways section below.


•


  Parameter	What is it?	Example Value
  type	The connector type.	zello-usb-gateway
  name	Assign the connector a name. This can be any string — it isn’t dependent on existing configurations.	USB Gateway 1
  playback_device	The operating system-assigned name of the connected gateway’s playback device.  To find this, go to Start > Settings > System > Sound on your Windows computer.	USB audio device
  recording_device	The operating system-assigned name of the connected gateway’s recording device.  To find this, go to Start > Settings > System > Sound on your Windows computer.	USB audio device
  serial_port	The operating system-assigned name of the connected gateway’s serial port. The serial port name can be found in your Device Manager. If your device doesn’t have a serial port, leave this field empty.	COM3
  tx_serial_port	True if the gateway utilizes the serial port line state to start and stop TX message transmission (to radio). This means the tx_line and tx_active_high are in use.  False if VOX is active.	false
  rx_serial_port	True if the gateway sets serial port line state to start and stop RX messages (from radio). This means rx_line and rx_active_high are in use.  False if VOX is active.	false
  tx_line	The supported values for this parameter are RTS and DTR. This field is dependent on the gateway in use. Please refer to your gateway’s manual for more information.	rts
  rx_line	The supported values for this parameter are CTS, DSR, RING, and CD. This field is dependent on the gateway in use. Please refer to your gateway’s manual for more information.	cts
  tx_active_high	Set this value to True if the active signal level is high. Set it to Fale if it’s not high.  This field is dependent on the gateway in use. Refer to your gateway’s manual for more information.	true
  rx_active_high	Set this value to True if the active signal level is high. Set it to Fale if it’s not high.  This field is dependent on the gateway in use. Refer to your gateway’s manual for more information.	false
  activation_db	The sound level at which Bridge will activate transmission.  The accepted values range from -80db (lowest) to 0db (highest).	-35
  deactivation_db	The sound level at which transmission is deactivated.  This cannot be set higher than the activation threshold, and it’s best to set it between 3 and 5db lower.  For example, if your activation level is set to -35db, set the deactivation to -37db.	-37
  trigger_time	The amount of time (in milliseconds) VOX takes to start transmission.  Increasing the trigger time will help eliminate false transmissions caused by short impulses.	200
  relaxation_time	The amount of time (in milliseconds) VOX takes to stop transmission.	700
  pause_time	The amount of time (in milliseconds) the gateway waits between transmission of two messages.  This setting helps prevent overlapping messages. Only applicable to VOX messages.	1000
  wake_up_time	The length in milliseconds of a loud, single-tone signal Bridge inserts before every VOX message. This ensures the radio recognizes the new transmission.  Only applicable if tx_serial_port is false and VOX is active.	0

Additional Information for JPS Gateways

Once you've created your Bridge configuration file, you'll also want to add a connection profile matching JPS RoIP connector configurations in your JPS radio gateway management interface. Use the following values for reference:

For detailed instructions about configuring JPS radio gateway hardware, please refer to your JPS product documentation.

Migration From the Legacy PC App to Zello Bridge

Please note: Zello will decommission its legacy PC app in the near future. As such, we strongly encourage users to migrate their data to Zello Bridge for the most updated, feature-rich product and support.

Networks currently utilizing the legacy PC app can easily migrate their gateway setups to Zello Bridge using the import wizard. This tool simplifies the process of copying your existing USB gateway configurations into Bridge.

If utilizing the import wizard, ensure your USB gateway device and serial port are connected before proceeding to step 1. Please note that the following steps should be performed on the device the legacy app is currently installed on.

1. Locate the configuration file using one of the following methods.

   Note that we recommend first trying the export method; if you're unable to export the file for any reason, then attempt to locate the file on your computer using the pathway provided in the About section.
   1. Using the navigation bar at top of your legacy PC application’s window, follow the pathway Tools> Backups>Export Options. Click Export Options, and download the file to your computer. Save it as a Zello config file.




   2. Go to Help > About Zello Work.  Scroll about halfway through the credits screen until you see the Local storage pathway.

      Follow this pathway on your device to locate the legacy PC app’s settings file. It will be named pttconfig.json


2. Sign out of the legacy app (Status > Sign Out). This will ensure Zello Bridge is able to access all necessary hardware.

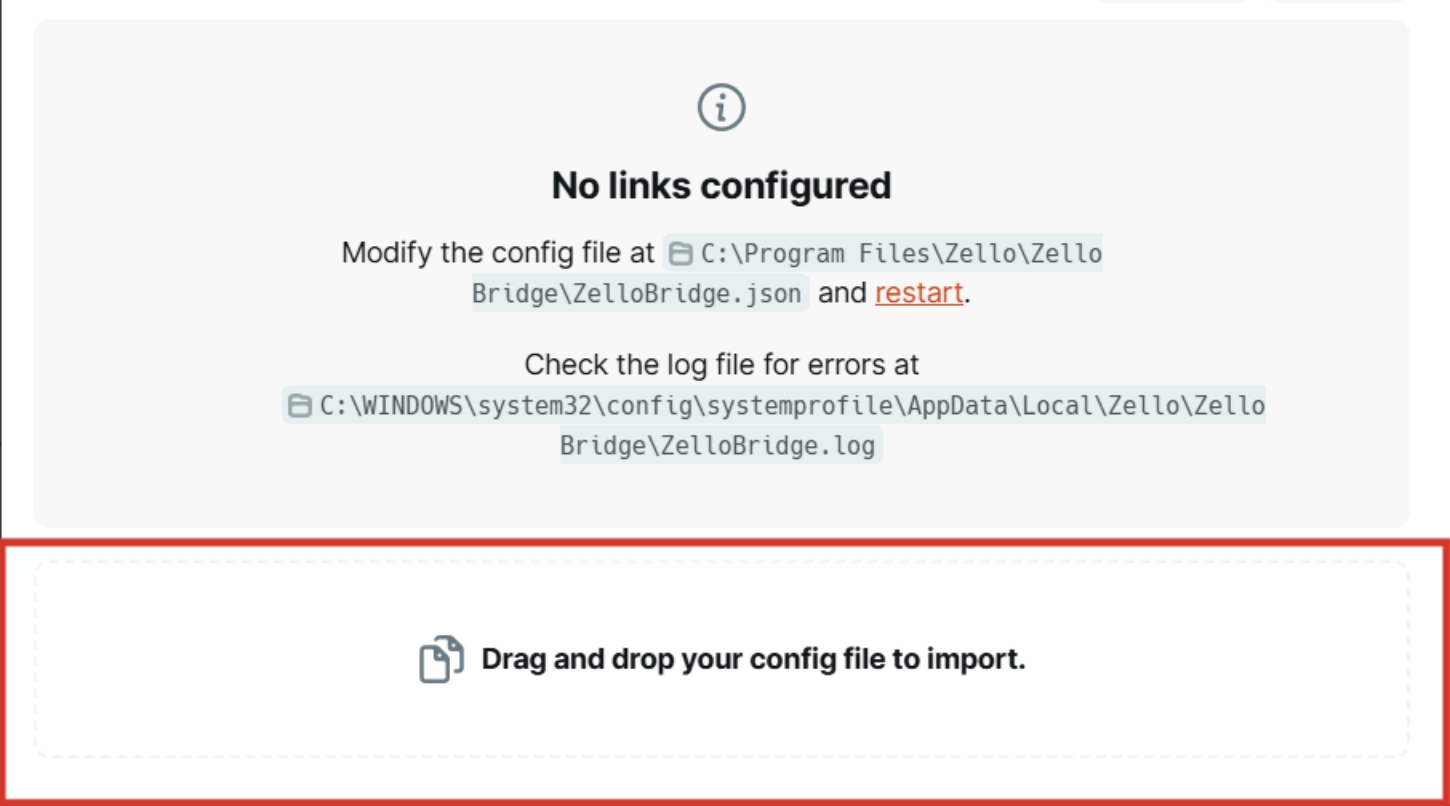

3. Drag and drop the settings file into the designated area on the Zello Bridge status page (http://localhost:8810/)



4. If the settings file parsed successfully, a New link popup will appear. Most—but not all—of the associated fields should be completed.



5. Fill in any missing values. Note that the gateway’s password, the channel name, and your network name will need to be manually entered.



6. When the form is completed, click Import new link.

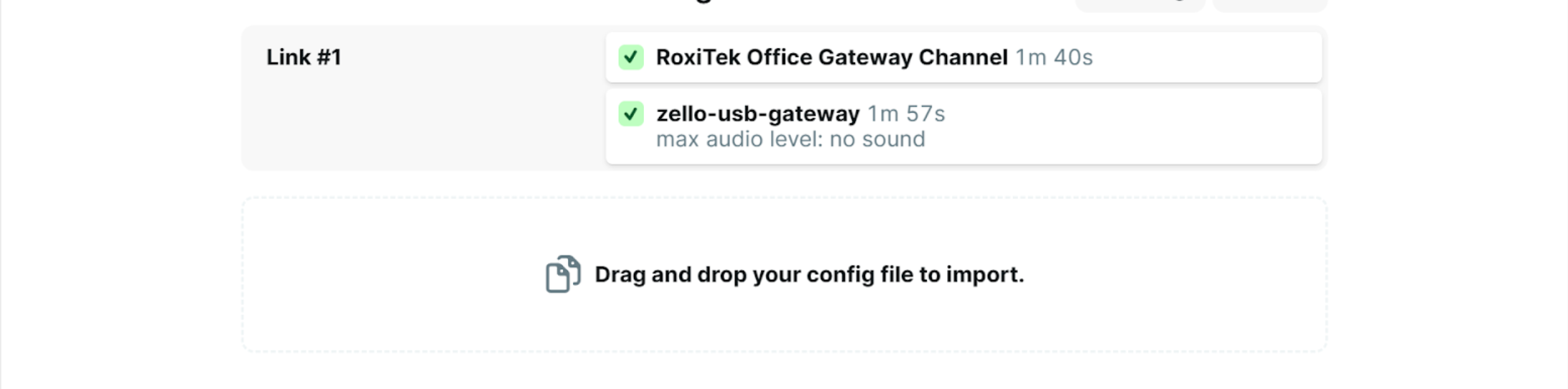

7. When the link has successfully imported and both connectors report being online, the new link will appear in the Zello Bridge configuration. Please note it will likely take about 30 seconds for everything to successfully activate.


   If there’s an issue with the configuration file, you’ll receive an error message that notes which field is incorrect. Fix the problem values, then click Import new link again.



   If this method doesn’t work for any reason—for example, you’re unable to export the legacy app’s settings file, or the new link won’t successfully import—consider editing the configuration file to include a new link.

• If the export/import method failed, edit your configuration file so that it includes an additional link connecting the USB gateway. Then, upload that file to Bridge. The section titled Editing the Configuration File walks through adding and editing Bridge links.

  Legacy PC app users with pre-existing gateway connections can find many of the required values in the app's Options menu. The following information can be found under Options:

  Audio Tab

  If either the playback device (1) or recording device (2) are missing from the configuration file, write the names in as they appear here.





  Radio Tab

  From the TX (PC to Radio) tab, you’ll find the required values for tx_serial_port (3)*, serial_port (4), tx_line (5), and tx_active_high (6). Copy these values as they appear into the configuration file.

  *value is TRUE if tx_line and tx_active high are in use


  Switch to the RX (Radio to PC) tab and repeat for rx_serial port, rx_line*, and rx_active_high.

  *If you utilize VOX mode, leave rx_line blank.

  VOX Tab

  If your network utilizes VOX mode, switch to the VOX tab and include the following information in your configuration file: activation_db (10), deactivation_db (11), trigger_time (12), and relaxation_time (13).



Troubleshooting

You may encounter a variety of errors when setting up your Bridge environment. The table below lists the possible error codes and their meanings.  If you run into trouble resolving these errors, don’t hesitate to contact our team for tailored assistance.

Error Codes

• Code	Meaning	Root Cause/Solution
  1001	Connector isn’t ready to process the incoming audio	Ensure the incoming audio isn’t splitting into a series of short messages. If messages are being split, it’s likely that a connector failed to accept the message.
  1002	Linked connector failed to process the audio	Please submit a log and reach out to paidsupport@zello.com for assistance. The resolution to this problem is highly dependent on the context provided by the logs.
  1003	Still sending the previous message	Ensure the incoming audio isn’t splitting into a series of short messages. If messages are being split, it’s likely that a connector failed to accept the message.
  1004	Receiving another message	Check if full-duplex mode is supported for all connectors associated with the link. If it isn’t, turn OFF full-duplex mode in your configuration. As a reminder, full-duplex mode means messages can be sent and received at the same time.
  1005	Unable to send outgoing audio	This error means Bridge is unable to identify anything to send.  First, check your network to confirm proper connectivity. Then, consider increasing your jitter buffer.

• Code	Meaning	Root Cause/Solution
  2001	Failed to resolve JPS gateway address	Confirm your remote_ip and remote_port configuration values are correct.
  2002	Failed to resolve host address	Confirm your local_ip and local_port configuration values are correct.
  2003	Gateway connection failed	Confirm that the gateway endpoint is accessible from the Bridge host/specific local endpoint.   Confirm your JPS device is configured correctly and is reachable by the computer running Bridge.
  2004	JPS gateway is offline	Confirm your network connectivity.  If connected, it’s likely you’re experiencing an issue with your JPS hardware.
  2005	Read bad packet	Your communication is likely being interrupted by one of the following:  MITM The proxy may be unintentionally corrupting the payload  General connectivity issue
  2006	Read bad audio packet	You may be experiencing one of the following:  Unsupported codec Payload corruption See your gateway's manual for more information.
  2007	Received bad audio packet	A connector is transmitting an unsupported audio format.  Check your gateway’s manual for more information on supported audio formats.
  2008	Read audio timeout	Your JPS gateway isn’t sending audio packets with the expected speed.  Check your JPS device’s manual for information on related settings. Each gateway will carry unique requirements.
  2009	Read buffer starving	Your JPS gateway temporarily stopped sending audio packets.  Consider increasing the value of the jitter_buffer_size value in your configuration file.
  2010	Send buffer starving	A connector temporarily stopped sending audio packets.  Consider increasing the value of the jitter_buffer_size value in your configuration file.
  2011	Send keepalive failed	There was an issue sending messages to the JPS gateway. This likely occurred because of a network connectivity issue.
  2012	Send timeout	The non-JPS connector stopped transmitting audio. Nevertheless, outgoing messages sent to the JPS will be delivered.




• Code	Meaning	Root Cause/Solution
  3001	Not connected	Bridge is unable to initiate a connection to your Zello Work network. Confirm your network name is correctly entered in the configuration file.
  3002	Invalid Zello credentials	Confirm your Zello Work username, password, and network name are correctly entered in the zellobridge.json file. If not, adjust the file, click save, then restart Bridge.  If credentials are correctly entered, then check your network connectivity.
  3003	Channel offline	You’re either experiencing network connectivity issues, or you’ve been disconnected from the Zello channel configured for your gateway.
  3004	Opus encoder failed	Bridge failed to create an opus packet, OR there’s a problem with the audio received from a connector.
  3005	Opus decoder failed	An invalid opus packet was received from the Zello connection. Likely causes include one of the following:  MITM Proxy-corrupted data Other connectivity issue
  3006	Start stream failed	Unable to start an outgoing message.  If you find this occurring often, check the talk priority assigned to the user account associated with Bridge. Consider decreasing the channel talk priority of the account.
  3007	Stop stream failed	The current message was likely interrupted by another channel user.
  3008	Error received	Bridge received an error from the channel API.
  3009	Kicked	The Zello credentials used by this Bridge connector was signed in on another client device.  Keep in mind that a single Zello account can only be used on one device at a time.

• Code	Meaning	Root Cause/Solution
  4001	Audio device not connected	Ensure the correct audio device is connected. Confirm the audio device’s name through your Device Manager.
  4002	Serial port not connected	Connect the USB and serial device, or check the existing serial ports in the operating system.
  4003	Audio device failed	Check your audio device for a driver update.
  4004	Serial port failed	Reconnect and/or restart the device that provides the serial port.
  4005	Port audio library failure	Check your audio device for a driver update.
  4006	Audio recording overflow	Some recorded audio samples have been dropped. Check your host device’s performance and confirm there aren’t any updates for your audio device’s driver.
  4007	Audio recording underflow	Some audio samples were not recorded, resulting in chunks of silence being delivered to Bridge.  Check your audio device for driver updates.
  4008	Recording buffer full	Some audio samples have dropped.
  4009	Resampling failure	To fully understand what’s causing this issue, we’ll need to investigate a log. Please reach out to paidsupport@zello.com for assistance.

Send a Log to the Zello Team

Logs provide additional context for the error codes you’re receiving. If you find yourself unable to resolve an issue, submit a log through the Bridge interface, then email us at paidsupport@zello.com for assistance.

To send a log from Zello Bridge:

1. From the Bridge interface, click Send log. Enter your email and describe the issue you’re experiencing. Then click Send to Zello.

2. Email paidsupport@zello.com. Let our team know you’ve recently submitted a log, and provide any additional context you think will aid the troubleshooting process.

Please note that we don’t monitor log submission, so it’s important that you email our team notifying us that you’ve sent a log. Additionally, it’s important that you send a log quickly after you’ve encountered an issue.
